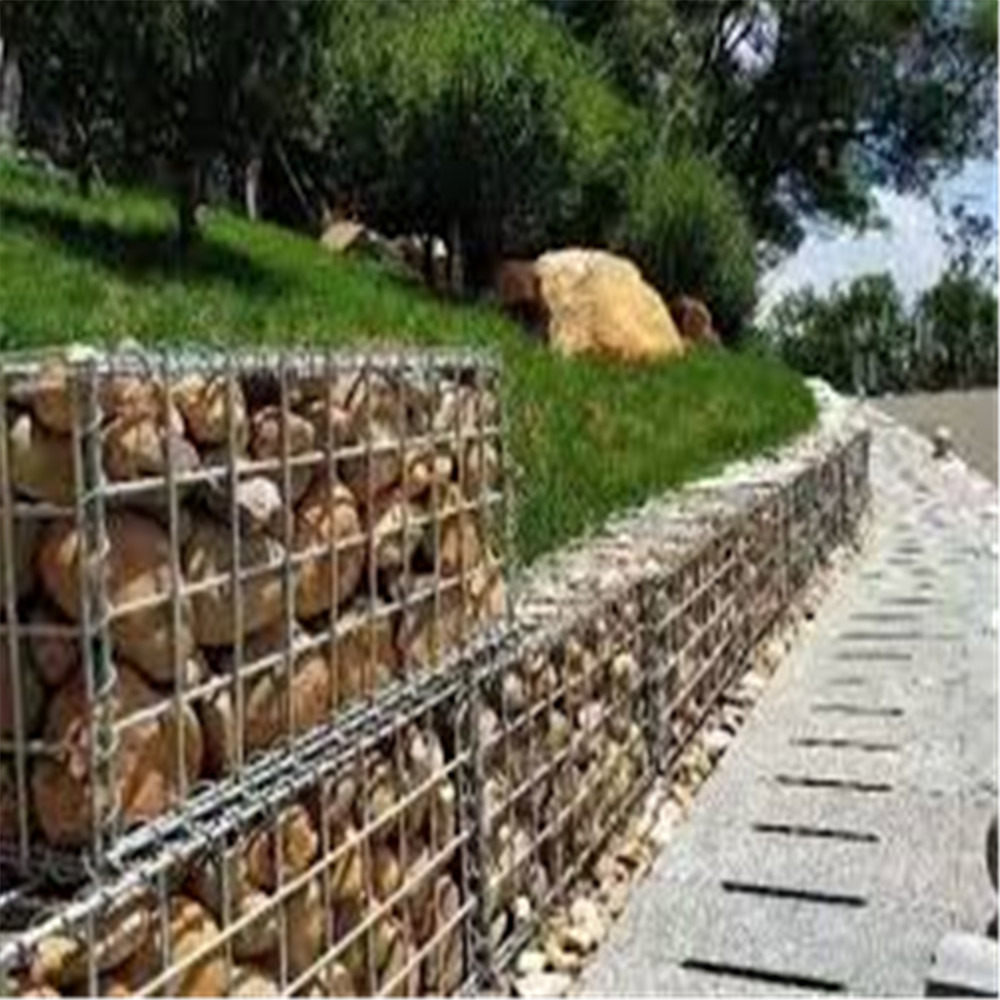

Hot Dipped Welded Mesh Gabions , Retaining Wall Using Gabion Baskets
Welded Gabion When it comes to packaging, the Welded Gabion Box can be delivered in pallets or bundles, ensuring convenient transportation and storage. The pallet packaging provides added protection during shipping, while the bundled option offers flexibility for handling and installation.
The welded gabion basket details:
- Product Name: Welded Gabion Box
- Box Size: 1x1x1m, 2x1x1m, 3x1x1m
- Customise: Acceptable
- Process: Woven Mesh
- Colors: As Required
- Wire: 3.0mm-5.0mm
| Type of welded Gabion | Wire Gauge Diameter | Mesh Size | Gabion Size |
| Galvanized | 3-5mm | 50X50,75X75,50X100 | 2*1*1, 1*1*1,1*1*0.5,etc |
| PVC Coated | 3.0/3.8mm | 50X50,75X75,50X100 | 2*1*1, 1*1*1,2*1*0.5,etc |
| 95% Zinc + 5% Al | 3-5mm | 50X100,75X75,100X100 | 1*1*0.5,2*1*1,1*1*0.3etc |
The welded gabion basket connection details
1. U -clips
2. C-ring
3. Lacing wire connection
4. Hook connection
The sprial wires & hooks or stiffeners is most popular as it's more strong for usage
Welded gabion basket advantage:
1. Economic. Just fill the stone into the gabions and seal it.
2. Simple installation. No special technology needed.
3. Weather proof under natural destroy, corrosion resistant.
4. Sludge in the stones is good for plant growing. Mixed to form a integrity with thenatural environment.
5. Good permeation can prevent the damage by hydrostatic.
6. Less transport freight. It can be folded together for transport and further installation.
7. No collapse even under big scope of deforming.
